Home | Air Amplifiers | Fixed Gap Air Amplifiers | Fixed Gap Airmovers | Standard Fixed Gap | AM10

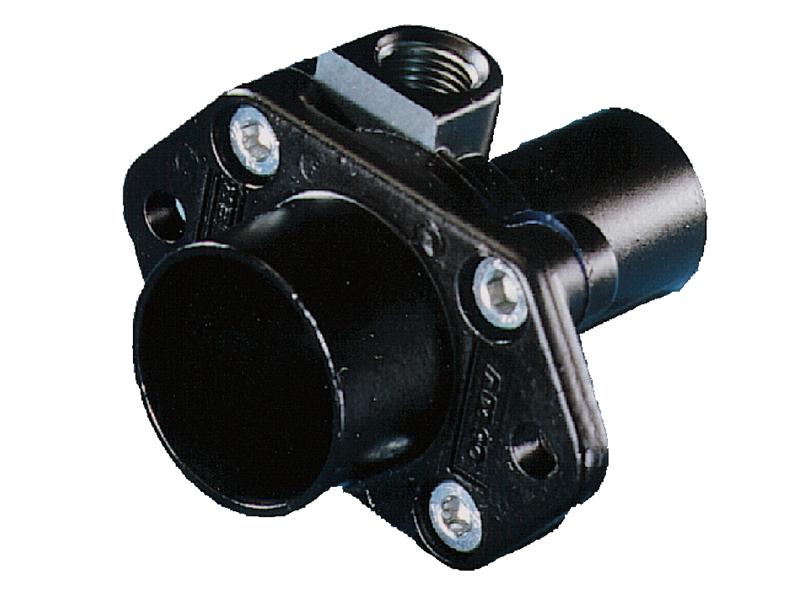

AM10

  • Range:Air Amplifiers
  • Category:Fixed Gap Air Amplifiers
  • Group:Fixed Gap Airmovers
  • Style:Standard Fixed Gap
£123.29+ VAT
Search on complete or part product code

Material: Zinc and aluminium alloy
Weight: 0.100Kg
Standard Gap: 0.05mm
dB(A) at: 5.5 bar is 72
Shims: 0.04, 0.05, 0.08mm Optional Extra
Standard Inlet Thread: G1/8
Options: 1/8 NPT, 1/8 NPTF
AM10
AM10

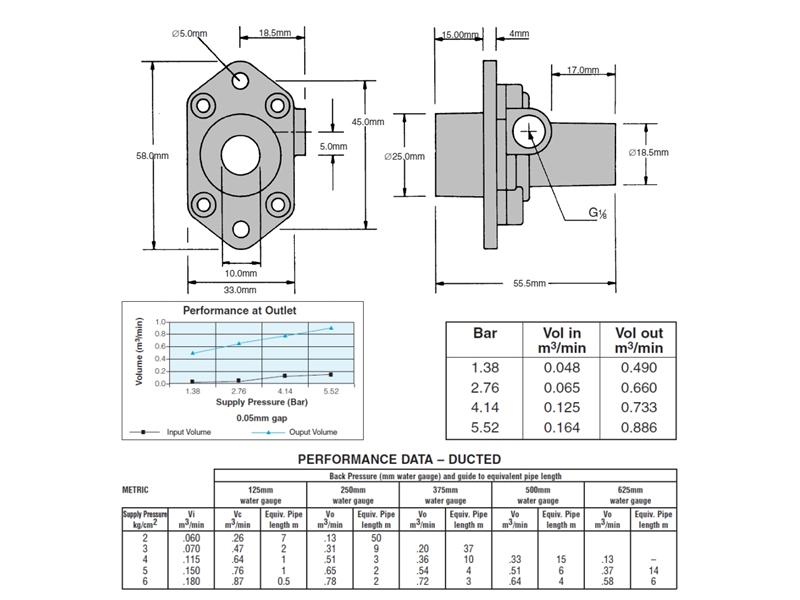

Toolbox Drawings PDF
