Home | Air Amplifiers | Strip Airmover | Aluminium Strip Airmover | Aluminium Strip Airmover | SE600

SE600 Variants

  • Range:Air Amplifiers
  • Category:Strip Airmover
  • Group:Aluminium Strip Airmover
  • Style:Aluminium Strip Airmover
Search on complete or part product code

Material: Aluminium/Zinc plated steel
Weight: 1.35Kg
Standard Gap: 0.05-0.10mm
dB(A) at: 5.5 bar is 80
Shims: Not applicable
Standard Inlet Thread: G1/4
Options: 1/4 NPT, 1/4 NPTF
<p><strong>Material:&nbsp;</strong>Aluminium/Zinc plated steel<br /><strong>Weight:&nbsp;</strong>1.35Kg<br /><strong>Standard Gap:&nbsp;</strong>0.05-0.10mm<br /><strong>dB(A) at:&nbsp;</strong>5.5 bar is 80<br /><strong>Shims:&nbsp;</strong>Not applicable<br /><strong>Standard Inlet Thread:&nbsp;</strong>G1/4<br /><strong>Options</strong><strong>:</strong><strong>&nbsp;</strong>1/4 NPT, 1/4 NPTF</p>
SE600

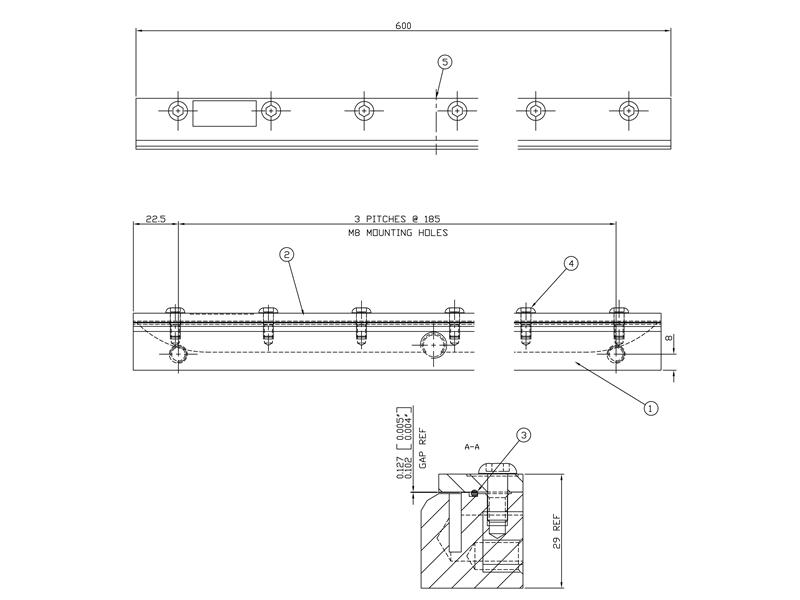

DrawingsPDF

Product Variants

Part No. Price Qty Stock Buy

Product Details

Part No. A B C D E F G H I
SE600 600 25 30 185 22.5 150 8 5 G1/4 CAD / BUY
