Home | Toggle Clamps | Manual Toggle Clamps | Vertical Toggle Clamps | Flanged Base Fixed Spindle | V350/2C

V350/2C Variants

  • Range:Toggle Clamps
  • Category:Manual Toggle Clamps
  • Group:Vertical Toggle Clamps
  • Style:Flanged Base Fixed Spindle
Search on complete or part product code

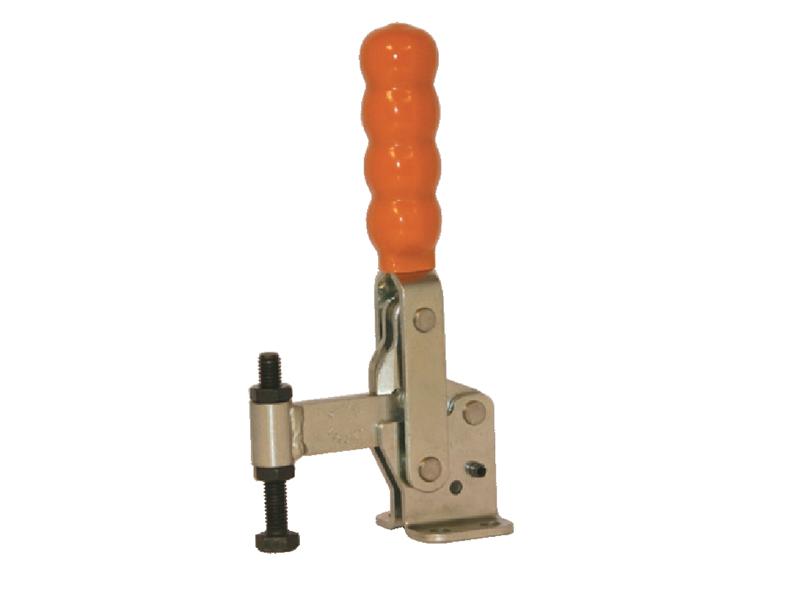

V350/2C

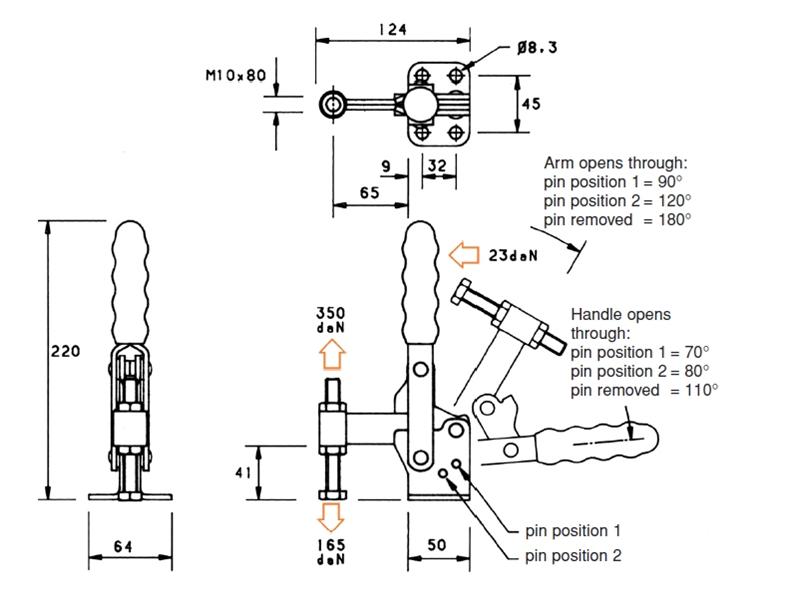

DrawingsPDFCAD Download

Product Variants

Part No. Price Qty Stock Buy

Product Details

Part No. A B C D E F G I Holding Force Weight
V350/2C 124 220 74 9 32 45 41 M10x80 350daN 0.75Kg CAD / BUY

Associated Products

FM3 FM3 Toggle Clamps > Front Mounting Brackets
MB1080 MB1080 Toggle Clamps > Setscrew Spindles
M1085 M1085 Toggle Clamps > Plain Spindles
MS1085 MS1085 Toggle Clamps > Swivel Foot Spindles
NTS1085 NTS1085 Toggle Clamps > Neoprene Tipped Spindles
