Home | Toggle Clamps | Manual Toggle Clamps | Heavy Duty Vertical Toggle Clamps | Flanged Base Fixed Spindle | VA1200/2C

VA1200/2C Variants

  • Range:Toggle Clamps
  • Category:Manual Toggle Clamps
  • Group:Heavy Duty Vertical Toggle Clamps
  • Style:Flanged Base Fixed Spindle
Search on complete or part product code

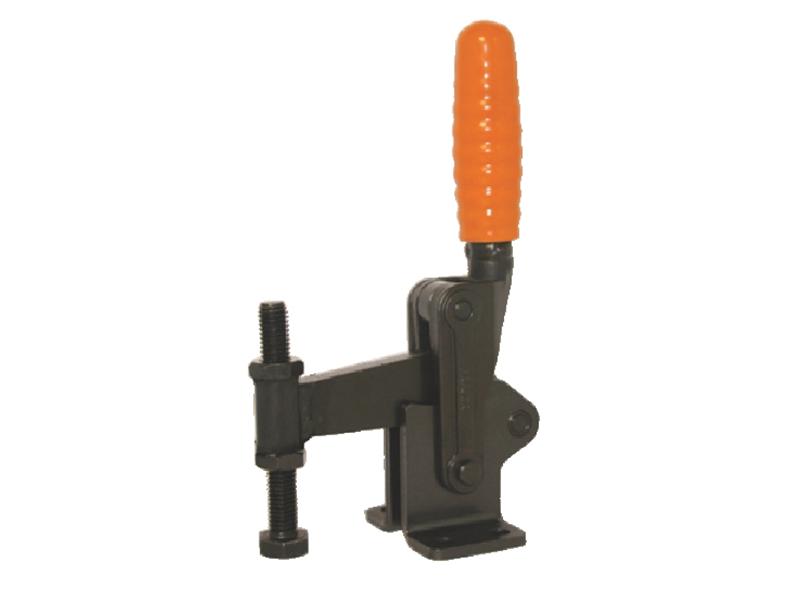

VA1200/2C
DrawingsPDFCAD Download

Product Variants

Part No. Price Qty Stock Buy

Product Details

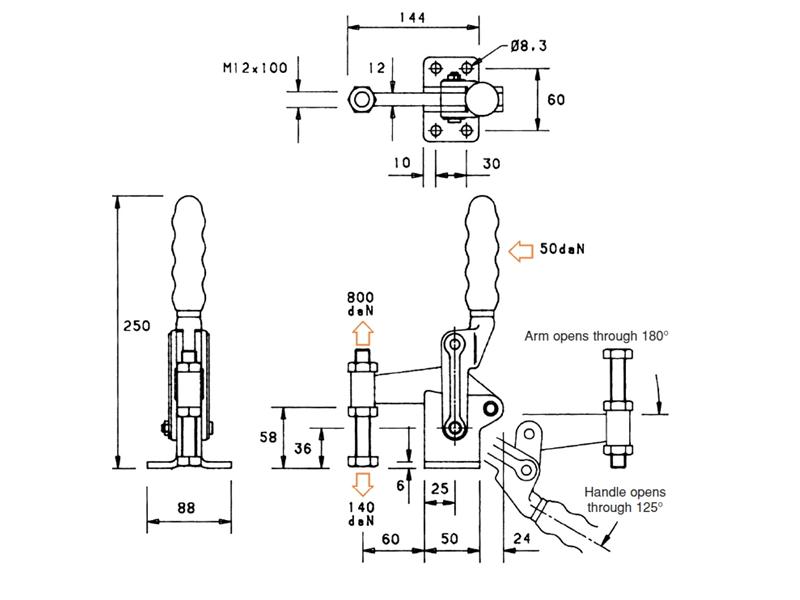

Part No. A B C D E F G H Holding Force Weight
VA1200/2C 144 250 60 10 30 60 58 8.3 1200daN 1.95Kg CAD / BUY

Associated Products

MB12100 MB12100 Toggle Clamps > Setscrew Spindles
M12100 M12100 Toggle Clamps > Plain Spindles
MS12100 MS12100 Toggle Clamps > Swivel Foot Spindles
NTS12100 NTS12100 Toggle Clamps > Neoprene Tipped Spindles
